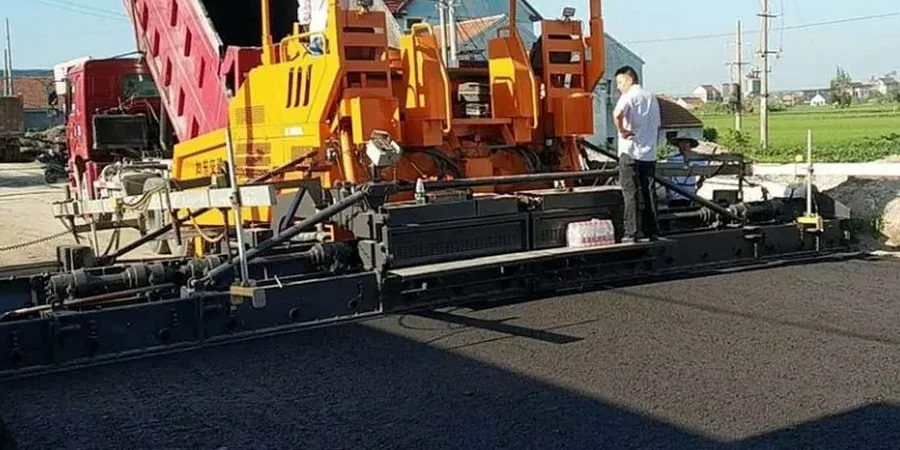

The Benkelman beam and lightweight deflectometer (LWD) are the first tools on site when we design flexible pavements in Naas. These instruments measure the elastic deflection of the pavement structure under a known load, giving us the structural number and residual life of each layer before a single core is taken. Naas sits on the eastern edge of the Carboniferous limestone plain, where glacial till overlies calp limestone; the subgrade stiffness can swing from 30 MPa to over 80 MPa within a single site. We calibrate the mechanistic-empirical model with deflections taken at the Monread Road roundabout and the Link Road corridor, two areas with distinctly different traffic spectra. For low-volume rural lanes around Two-Mile-House, we often combine the LWD grid with a CBR road subgrade assessment to validate the presumptive modulus, especially where the water table rises above the summer level of 1.2 metres below formation. The output is a layer schedule, not a textbook diagram, backed by a full set of Falling Weight Deflectometer runs when the project exceeds 500 equivalent standard axles per day.
A properly designed flexible pavement transfers wheel load through layer stiffness contrast, not just thickness; in Naas, the glacial till subgrade controls the entire structural number.
Service characteristics in Naas
Risks and considerations in Naas
The contrast between the well-drained gravels north of Naas town centre and the moisture-sensitive clay pockets south of the canal is stark. Northern sites often hit refusal on limestone bedrock within 1.5 metres, delivering CBR values above 15% that make pavement design straightforward. Southern sites, particularly those near the Grand Canal, encounter alluvial silts with CBR values as low as 2%, demanding full-depth asphalt or cement-stabilised layers. The main risk in Naas is not structural collapse but progressive rutting: a pavement that passes the deflection test in September may fail after a wet winter if the drainage detail ignores the perched water table that forms where the till meets the limestone. We specify a capping layer with a minimum CBR of 15% and a permeability below 1x10⁻⁷ m/s, tying the formation level to the winter water table, not the summer reading. The TII Design Manual for Roads and Bridges (DMRB) Volume 7 provides the moisture correction factors we apply to every subgrade sample taken between October and March.
Our services
We deliver the full pavement design package for Naas schemes, from site investigation through to construction specification.
Mechanistic-Empirical Design
Multi-layer linear elastic analysis using BISAR and KENLAYER, calibrated with FWD deflection data. We model critical strains under the TII traffic spectrum and produce layer schedules that meet the design life requirement without over-engineering.
Subgrade Investigation & CBR Testing
Dynamic cone penetrometer surveys, LWD stiffness mapping, and laboratory CBR on soaked specimens. We sample at formation level across the entire footprint, identifying soft spots before capping layer placement.
Construction Quality Control
Nuclear density gauge testing, asphalt coring and Marshall stability verification, and Benkelman beam deflection acceptance on each completed layer. We report against the end-product specification in the TII Standard Specification for Roadworks.
Quick answers
How much does a flexible pavement design cost for a road project in Naas?
The cost for a flexible pavement design in Naas ranges from €1,570 to €4,320, depending on the road length, number of layers, and whether an FWD survey is included. A short access road with a simple granular structure sits at the lower end, while a full mechanistic-empirical design for a heavily trafficked carriageway with multiple material options and a construction specification package falls at the upper end. All fees include the site investigation, laboratory CBR testing, the design report, and the layer schedule drawing.
What traffic loading data do you need to start the design?
We need the Annual Average Daily Traffic (AADT) split by vehicle class, or the total commercial vehicle count if class data is unavailable. The design is expressed in million equivalent standard axles (msa); we convert the traffic count using the TII traffic growth factors and the standard axle equivalence factors from DMRB Volume 7. For brownfield sites, we also request historical axle weight data if weigh-in-motion records exist.
Can you design a flexible pavement over soft ground near the Grand Canal?
Yes, we have designed several pavements for the canal-side developments in Naas. The approach combines a capping layer with a minimum CBR of 15% and, in cases where the alluvial clay extends beyond 2 metres, a geogrid-reinforced granular platform. We model the subgrade as a two-layer system in KENLAYER, placing the geogrid at the sub-base/subgrade interface to increase the bearing capacity ratio. We also specify a sub-surface drainage layer to intercept the lateral groundwater flow toward the canal.
How do you verify the pavement layers during construction?
We use a combination of nuclear density gauge testing for compaction control, Benkelman beam or LWD deflection testing on each completed layer, and asphalt coring for thickness and air void verification. The acceptance criteria follow the end-product specification in the TII Standard Specification for Roadworks: the deflection bowl must fall within the design envelope, and the asphalt compaction must achieve 92% to 98% of the reference density, depending on the mixture type.
What is the typical pavement structure for a residential estate road in Naas?
For a residential estate road with less than 0.5 msa design traffic, the typical structure is 40 mm of hot rolled asphalt surface course, 60 mm of dense bitumen macadam binder course, and 200 mm of Clause 804 granular sub-base on a capping layer. Where the subgrade CBR exceeds 5%, the capping can be omitted. We specify a crossfall of 2.5% and edge drainage to the County Kildare surface water network, with the formation level set at least 500 mm above the winter water table.
